The National Ready Mixed Concrete Association (NRMCA) has conducted a comprehensive study to assess the earthquake resilience of structures constructed using Insulated Concrete Forms (ICF) compared to traditional wood and steel structures. The study aimed to evaluate the seismic performance, damage mitigation, and overall cost-effectiveness of ICF buildings, particularly in regions prone to earthquakes. This summary highlights key findings, visual content, and offers a link to the full report for a more in-depth exploration.
Seismic Resilience - A Paradigm Shift
One of the most significant takeaways from the report is the paradigm shift in seismic resilience that ICF structures represent. The study demonstrates that ICF buildings exhibit significantly higher strength and stiffness compared to traditional wood and steel constructions. This improved structural integrity leads to reduced damage during earthquakes, ultimately enhancing occupant safety.
Visual Insight - Drift Comparison

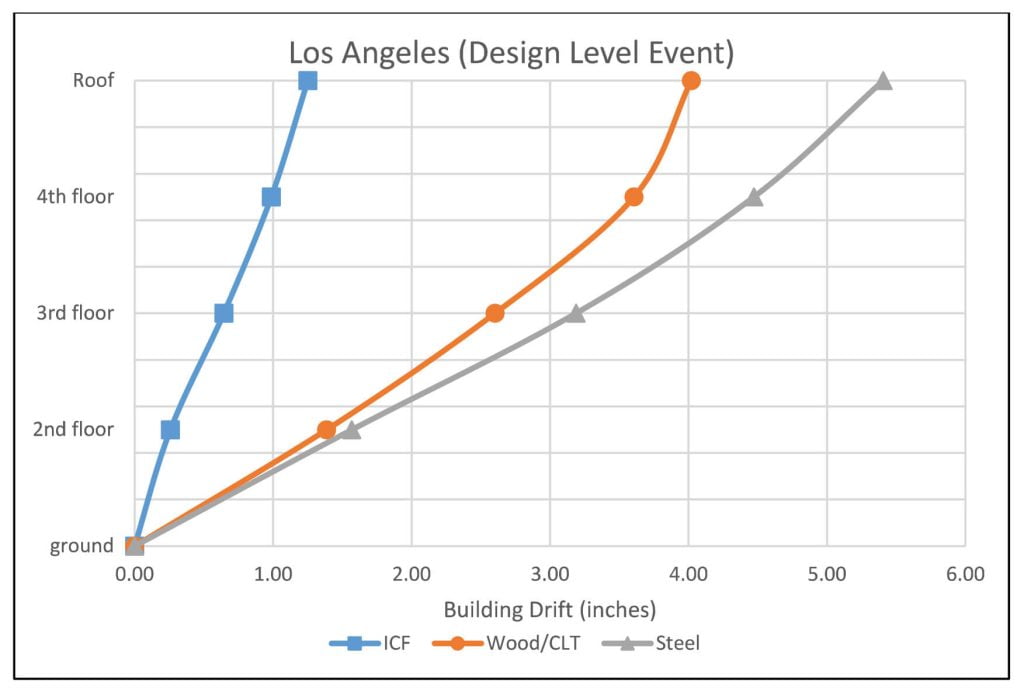

A visually compelling representation in the report is Figure 4, which displays a comparison of building drifts between ICF and traditional materials. The ICF configurations exhibit remarkably lower building drifts, which means less lateral movement and swaying during an earthquake. This directly translates to reduced structural damage and increased safety for occupants.
Damage Mitigation and Recovery Time

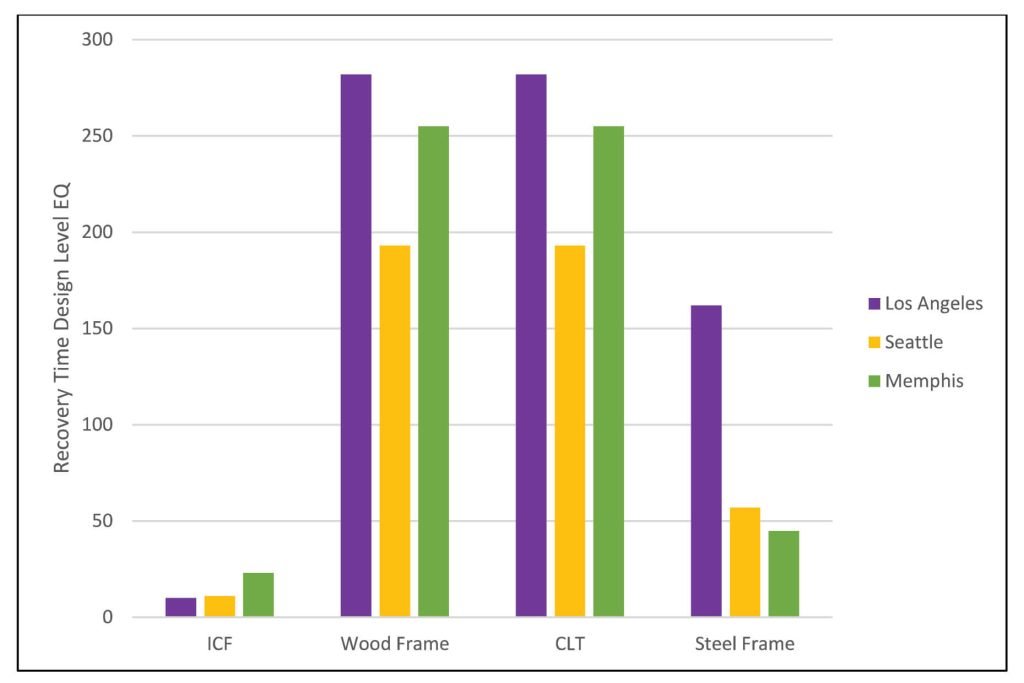

Figure 5 illustrates the recovery time comparison between ICF and other construction materials. It vividly shows that ICF structures have significantly shorter recovery times, often less than two weeks, compared to traditional materials, which may take several months to regain functionality. This finding highlights the crucial role of ICF in ensuring faster community recovery after a seismic event.
Quantifying Cost-Efficiency

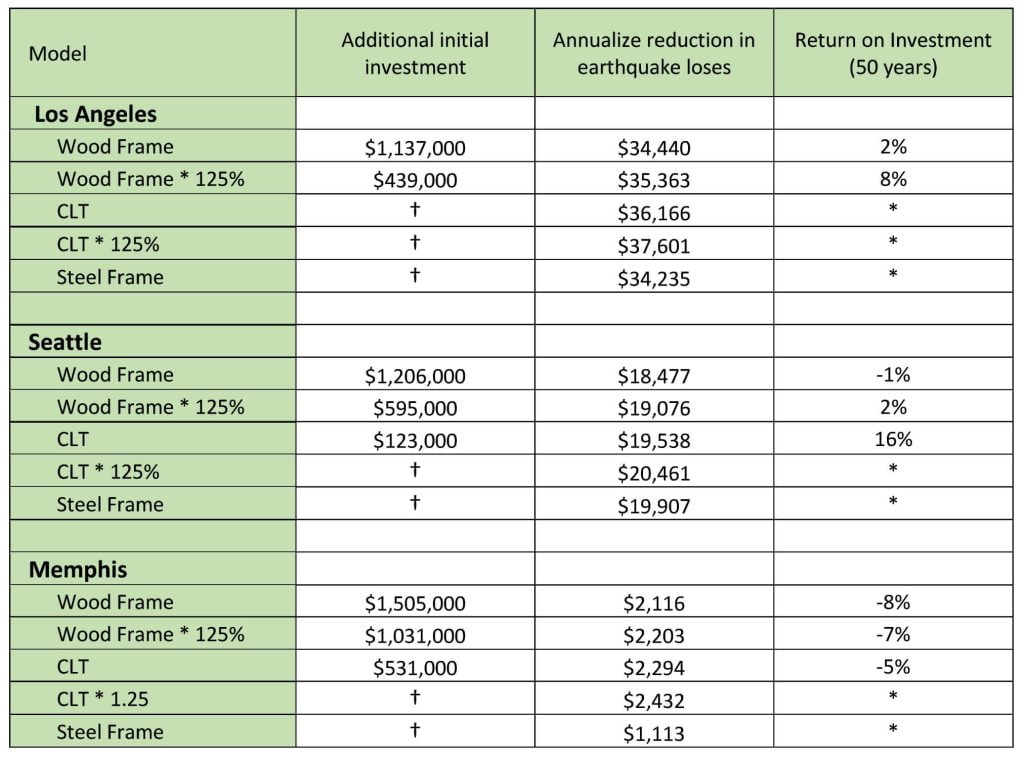

The report addresses the cost-effectiveness of ICF construction, comparing it to traditional wood and steel. Table 6 showcases the return on investment (ROI) over a 50-year period. While the construction costs of ICF are only marginally higher (typically 6% or less), the reduced earthquake losses result in substantial ROI, ranging from 2% to 16%, depending on the location and materials. This highlights the long-term economic benefits of ICF construction.
USRC Earthquake Building Performance Rating

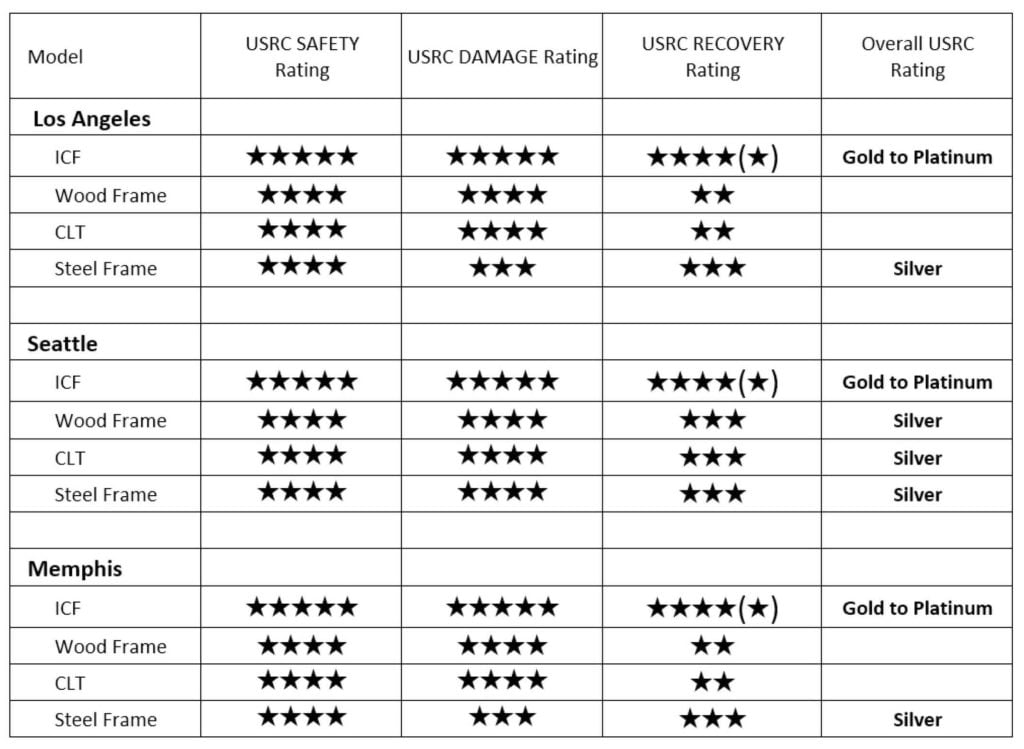

The report introduces the US Resiliency Council’s Earthquake Building Performance Rating System, which communicates building performance across three dimensions: Safety, Damage, and Recovery Time. Table 8 presents likely USRC Ratings for different building materials. ICF stands out by potentially receiving Gold or Platinum ratings, emphasizing its superior earthquake resilience.
Conclusion - A Resilient Future
In conclusion, this study by NRMCA underscores the seismic advantages of ICF construction over traditional wood and steel methods. ICF structures exhibit superior strength, reduced damage, shorter recovery times, and excellent cost-efficiency. These findings support the adoption of ICF as a promising solution for enhancing earthquake resilience in vulnerable regions.
Download the Full Report:
For an in-depth analysis and access to all the valuable insights and data, you can download the full NRMCA report here: Download Full Report
By recognizing the NRMCA’s efforts in advancing earthquake resilience research and promoting ICF as a viable construction alternative, we can take significant steps toward building safer and more resilient communities in earthquake-prone areas.
Don't miss a thing
Sign up to receive the latest info on new Element ICF products, special offers and more.
The Role of Element ICF in Disaster Resilience
In the quest for enhancing disaster resilience, Element Insulated Concrete Forms (ICF) have emerged as a game-changer in the construction industry. These advanced building materials offer unique advantages in earthquake-prone regions and other disaster-prone areas:
- Exceptional Structural Integrity: Element ICF systems are renowned for their exceptional strength and stiffness. They provide robust structural integrity, which is crucial in withstanding the forces unleashed during earthquakes, hurricanes, and other natural disasters.
- Enhanced Thermal Performance: Beyond their disaster resilience, Element ICF structures also offer superior thermal insulation. This means not only can they withstand the impact of disasters, but they also contribute to reduced energy consumption and lower operational costs in the long run.
- Rapid Construction: Element ICF’s innovative design allows for faster construction compared to traditional methods. In disaster recovery scenarios, speed is of the essence, and Element ICF can significantly accelerate the rebuilding process.
- Minimal Maintenance: Element ICF structures are known for their durability and low maintenance requirements. This translates to reduced post-disaster repair costs, ensuring communities can recover more efficiently.
- Customizable Designs: Element ICF systems are highly versatile and can be tailored to fit various architectural designs and building requirements. This flexibility is essential when adapting to different disaster-prone environments.
When comparing the seismic resilience of Element ICF to traditional building materials, numerous studies have shown that ICF outperforms wood and steel in terms of strength, reduced damage, and faster recovery times. Integrating Element ICF into your construction projects not only ensures the safety of occupants but also contributes to the overall resilience of communities.
Incorporating Element ICF into your disaster-resilient building strategies aligns with the broader goal of creating safer, more sustainable, and earthquake-resistant communities.
To learn more about Element ICF and its contributions to disaster resilience, consider exploring our comprehensive resources or consulting with our experts.
