Winter may officially last three months, but cold climate builders grumble about chilly weather for a solid 5. Cold winter conditions greatly impact conventional concrete forming. With insulated concrete forms (ICFs), not so much.

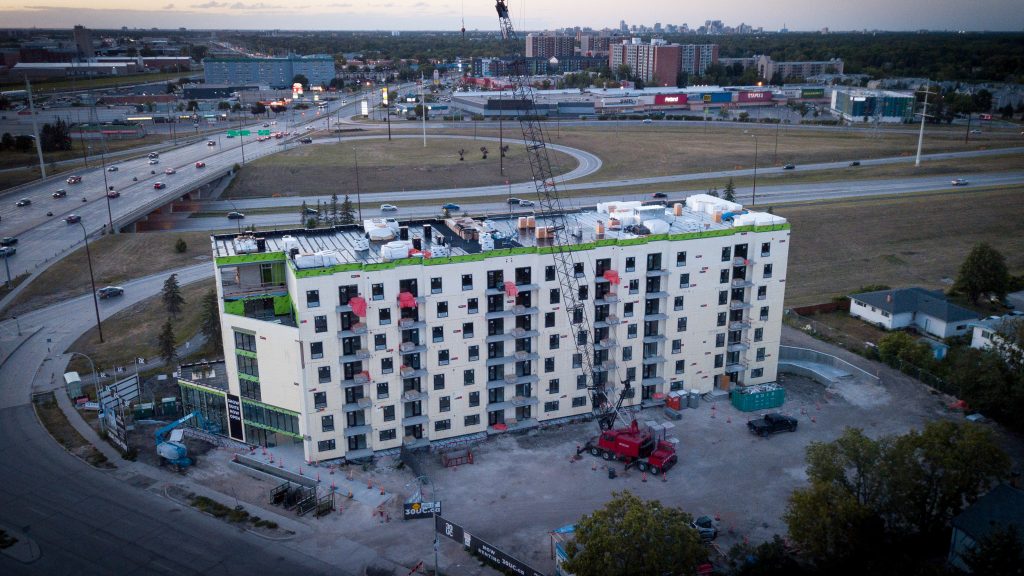

We’ll use a real example in Winnipeg, Manitoba with Harv Schellenberg of SchellRiver ICF, who started his concrete work on the 7-story 30 University Crescent building in temperatures as low as -20°C (-4°F) building with Element ICF.
Despite the frigid conditions, Harv could keep his concrete activities pretty much on a summer schedule thanks to the insulating power of Logix ICF predecessor of Element ICF walls.
Because the ICFs shielded his pour from the winter chill, Harv was able to keep the concrete at a proper curing temperature with only a foam board top cap (in this case Halo Subterra), pre-drilled to accept and place the rebar dowels. An insulated tarp quickly placed over the top of the wall only.
The concrete was kept within the safe 10-30°C (50-86°F) range for curing with no need to insulate the sides of the wall or to heat the concrete artificially.
After only 48 hours, Harv’s team could remove the Subterra top caps and the tarp and store them for future use and move on.
Don't miss a thing
Sign up to receive the latest info on new Element ICF products, special offers and more.
Construction Steps Saved
With conventional forming, the concrete would have been left exposed to the cold elements.
An entire day likely would have been spent insulating the pour with a tarp on both sides of the walls. Then, the concrete would have been heated by doing something like running pex tubing through the wall AND tying it to the rebar. And then, glycol would have been heated and run through the tubes, and afterward, the lines abandoned after the concrete was cured. What a waste!
And Now The Hollow Core Floors…
In this case, the building’s concrete structure is comprised of ICF exterior walls and demising walls. The demising walls supported the precast hollow-core slabs.

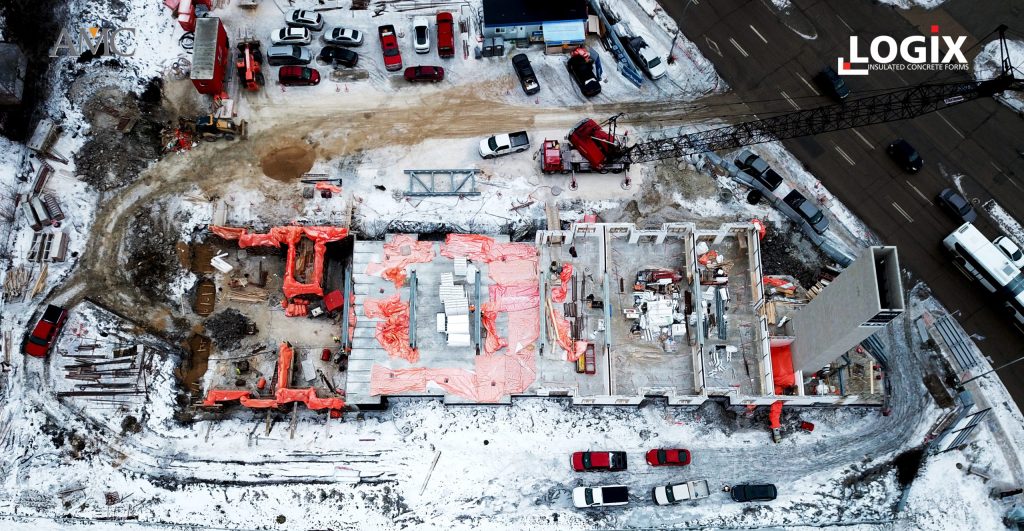

During the course of the project, Harv’s team also observed how convenient and fast it was to grout the hollow core floors in winter conditions thanks to the highly insulated wall assembly encasing the living area below.
Here’s what Harv’s typical grouting process was like for each level of the 7-floor tower:
Tuesday:
- demising walls are poured
- tops of the demising walls are capped with pre-drilled Subterra panels and an insulated tarp
Thursday:
- hollow core slabs are installed, bearing on the demising walls
- an insulated tarp is placed over the hollow core slabs, as well as over the wall openings in the walls of the floor level below
- Because the envelope is so insulated, the floor below is heated with just 2 Herman Nelson heaters for the entire floor area.
- The heat rises and conditions the slab above for grouting.
Friday:
- the hollow core slabs are grouted
Monday:
- the grouted joints are now cured
- construction activities ready to proceed again on the grouted hollow-core floors
That pretty much resembles a summer routine except for the nominal additional costs of laying the tarp and heating with 2 Herman Nelson heaters.
Wrapping it up
If you build in Canada or the Northern United States , insulating and heating freshly poured concrete rarely seems like business as usual. With Element ICF, it can be. By simply choosing ICF over traditional concrete forming and saving numerous winter construction steps, your winter and summer pours can be strikingly similar, both in terms of schedule and budget.
